JConcepts.net Exclusive New Release – Regulator Chassis Conversion Kit And B.A.S.


JConcepts.net exclusive new release –

Regulator chassis conversion kit, fits – Clod Buster

A deep passion for monster truck racing and performance brought JConcepts full circle with the design of the Regulator Stage 2 chassis conversion kit for the Clod Buster. The design team had several design goals including weight balance, low center of mass, the use of engineering materials and pinpoint adjustability to fully compliment one of the longest running vehicles in the RC industry. The Regulator focuses on allowing other existing RC components to work alongside of the design such as readily available body designs, shocks, wheels, tires and behind axle servo conversion kits.


The key to the Regulator is the positioning of the battery and electronics in a top access layout and placed deep into the chassis for a low center of gravity. The fiberglass chassis and bottom plates hold the retro straight rail frame physique and at the base of the chassis, the heavy-duty aluminum cradle supports the suspension and ladder bars. In addition, a brass weight is included for racing in a sanctioned competition where a weight limit is used to even the playing field even further. The brass weight is mounted at an incredibly low position and locks into the cradle which aligns perfectly with the low center of gravity concept.

The light-weight aluminum shock and body post mounts are precision machined and mounted on each corner with 3mm hardware and setup to accept a variety of shocks on the market. Aluminum horizonal chassis members are positioned front and rear and have been lightened in a vintage fashion consistent with a Stage 2 monster truck. The chassis brace tubes have been tricked out to show a hexagonal shape and tubular shape to luster out the chassis assembly.


Machined and adjustable Delrin body posts are included along with pin screws to attach to the aluminum shock and body mount part providing a height adjustment. The battery mounting system contains a fiberglass battery strap for a shorty style battery with bump stops on each end to hold the battery positioning on the radio tray. Finishing off the panels of the chassis, polycarbonate pieces are included and can be trimmed to slide into the pockets of the chassis to give scale looks. Trim and position the included decal sheet on the panel to detail out the sides of the Regulator to fit whichever theme suits the build.


The JConcepts conversion kit is packaged with pride and as always, each is backed with JConcepts customer support and racing heritage.


Notes from the team –
To complete the build, it is necessary to have a Clod Buster or complete axle assemblies and electronics to go along with the Regulator conversion kit. It is advised and required to use a servo on axle conversion kit or preferably, the JConcepts #2823 servo mount kit for behind the axle steering. It is also necessary to have standard Clod Buster shocks or 100mm in length oil filled shocks. To see assembly instructions, video or how-to tips and tricks, please visit JConcepts Inc. on YouTube.

Regulator on the track –
The chassis set and behind axle steering has been extremely successful in competition taking 1st place at the inaugural Monster & Mega Tour in Gaithersburg, Maryland, and again at the Trigger King 2020 Summer Series race #2. Originally prototyped for the 2019 International Monster Truck Hall of Fame event in Auburn, Indiana, Jason Ruona and Fred Reep tested prototype steering and chassis configurations during this event to great success.

JConcepts accolades in competition –
IFMAR World Champion • ROAR National Champion • European Champion • Reedy Race of Champions • Dirt Nitro Challenge Champion • Silver State Champion • Desert Classic Champion • JConcepts Indoor National Series • Monster Jam World Finals Champion

Features:
• Precision machined aluminum
• Quality fiberglass steering rack
• Heavy-Duty aluminum cradle
• Brass optional weight for sanctioned competition
• Black anodized aluminum shock and body mounts
• Machined and vintage lightened chassis members
• Hybrid hex / tubular chassis braces with anodizing
• Delrin adjustable body mounts
• Fiberglass battery hold down assembly with bump stops
• Lightweight / durable design
• Aesthetic, race- ready jewelry




Regulator servo mount kit, (B.A.S.) 1 set

The Regulator servo mount kit is a great way to improve the performance of the Tamiya Clod Buster. JConcepts has made one of the best upgrades available and with precision machined aluminum, quality fiberglass, steel hardware, and bearings, the behind axle steering is built for the competitor and basher alike. In competition, the racing team was experiencing some trouble with conventional steering setups on the Clod Buster during crashes and side-by-side racing and a new idea was born.

Utilizing experience, Jason Ruona and Fred Reep developed a prototype assembly to place the servo behind the axle in an upright position. By moving the assembly behind, the components were now much more protected from crashes and collisions. The tea…

Utilizing experience, Jason Ruona and Fred Reep developed a prototype assembly to place the servo behind the axle in an upright position. By moving the assembly behind, the components were now much more protected from crashes and collisions. The team reversed the steering blocks and connected them with a bearing supported fiberglass steering rack with aluminum top-hat bushing and steel hardware.

The servo attaches to machined 2-piece mounts which assemble with included 3mm hardware and lock the servo placement into the new position. The top piece rests on the stock Clod Buster axle stay and after bolting the L-shaped legs to the bottom, create the ultimate servo mount. To clamp the assembly to the axle, a 1-piece fastener slides underneath the axle stay and secures with 3mm hardware.

Also included, genuine Team Associated ball-cups and ball-studs to connect the rack to the servo horn to give durability and highly directive steering response. It is recommended to use an aluminum and clamping 18mm long servo horn on a high-quality, metal gear servo with a high torque rating to connect servo to the steering rack assembly. A high-quality fiberglass rear steering lock-out and mounting hardware is included to align the rear-end of the truck and eliminate rear steering for tracks and courses not requiring a super tight turning radius.

Driving with front steering only allows more control in a straight line and locking the rear-end makes for a consistent racing truck throughout bracket competition. For the best performance, always Regulate your steering assembly with JConcepts.

Notes from the team –
To increase steering radius, plastic material can be removed from the Clod Buster steering blocks and ladder bars to achieve more steering throw. To see assembly instructions, video or how-to tips and tricks, please visit JConcepts Inc. on YouTube.

Features:
• Precision machined aluminum
• Quality fiberglass steering rack
• Black anodized aluminum servo mount items
• Aluminum top-hat bushings with steel hardware
• Genuine Team Associated ball-cups and ball-ends
• Lightweight / durable design
• Aesthetic, race- ready jewelry

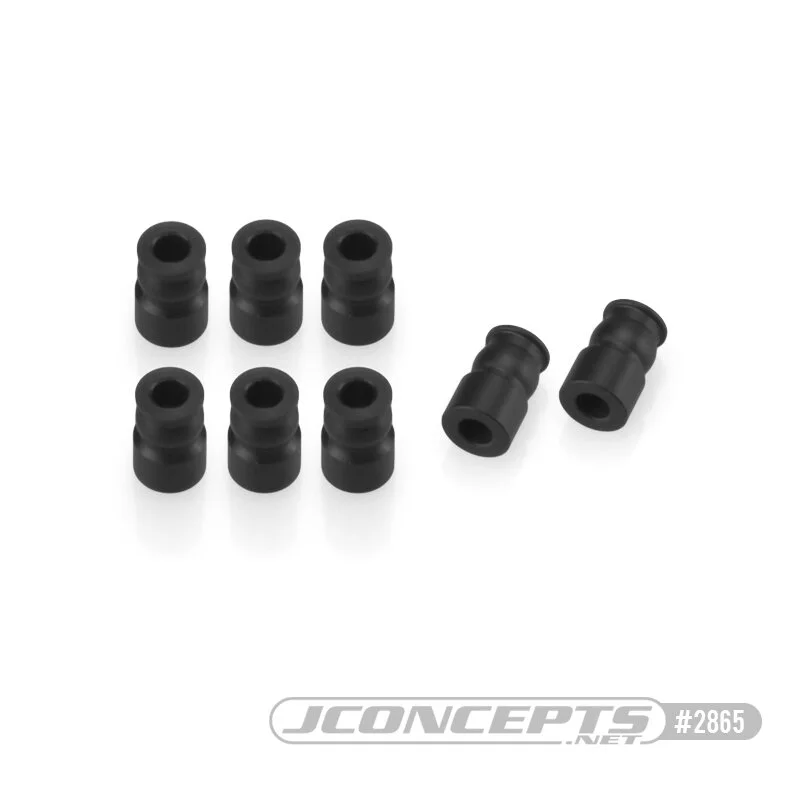

Delrin pivot bushing, 8pc

For the best performance and while utilizing Team Associated 12mm shocks on the JConcepts Regulator chassis conversion, its recommended to use the Delrin pivot bushings. The custom designed, extended length bushing with tough and smooth finish makes the perfect compliment to a great set of shocks. The package includes 8 pieces of the bushings which should be used in conjunction with 3mm mounting hardware and nylon locknuts.


Features:
• Custom design, 8pc set
• Tough and smooth finish
• Great pivoting action




Regulator chassis conversion kit, fits – Clod Buster

Part# 2813
UPC Code – 845937022998
Retail price – $280.00
Map price – $238.00
(Fits – Clod Buster)
(Requires – #2823 Behind Axle Steering Servo Mount Conversion)

Regulator servo mount kit, (B.A.S.) 1 set
Part# 2823
UPC Code – 845937023001
Retail price – $75.00
Map price – $63.75
(Fits – Clod Buster & Regulator monster truck conversion)
*B.A.S. (Behind Axle Steering)

Delrin pivot bushing, 8pc
Part# 2865
UPC Code – 845937023155
Retail price – $17.00
Map price – $14.45
(Fits – Regulator chassis set for AE shocks)
